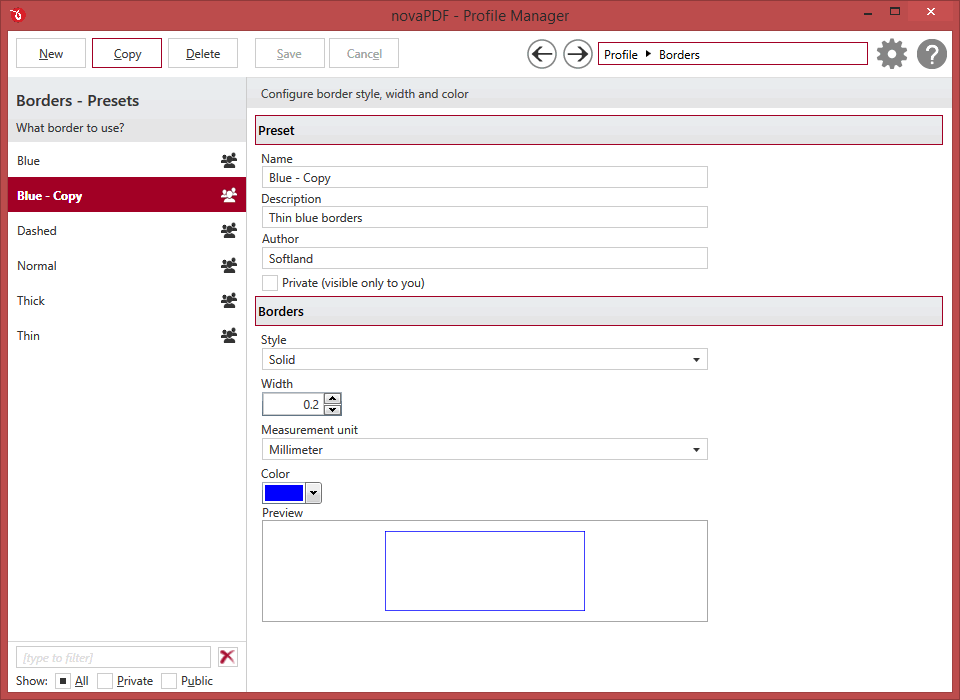

The Borders presets section allows you to manage the existing default presets or add new ones. These presets let you define the border styles to be used with various objects added in the Layout section. A preset can be used by multiple printing profiles and whenever a preset is updated, it will be modified automatically in all profiles that use it.
This will create a new preset based on the default one. You can change its settings and use the Save button to record your changes and create the preset. It is created only after you click on the Save button, if you click on Cancel or select a different preset the current one will be discarded.
This allows you to duplicate an existing preset. To do so, just select an existing preset and click on Copy. Unlike the New option, when you copy an existing preset the duplicate is automatically saved with a different name (original name of the preset plus the word Copy ). Removing the original preset doesn't affect in any way the existing copy of it.
Deletes the preset selected from the list of presets. You cannot delete the default presets that are included in the application.
You can use the left/right arrows in the top-right section of the window to navigate back to the profile manager page or forward to the preset window. You can also access quickly the presets by clicking on the Profile text next to the navigational arrows and selecting the preset section you want to read more about.
When the novaPDF is installed, a default set of presets is included for each section that uses presets. These presets have predetermined unchangeable settings that are taken into consideration when creating the PDF files.
However you can create custom presets based on the default ones that when used, will create PDFs using the options you've chosen. In novaPDF there are two types of presets, private and public:
- Private presets. A private preset is visible only to the current user. By default new presets are created as private and only the users from the computer where it was created will be able to see it and use that preset in their profiles.
- Public presets. Public presets are visible from all client computers (or other users on the same computer) that connect to and print via the computer where they are defined (the printer server). When a public preset will be used, all the settings from that preset will be propagated to the client computers.
This list shows the presets (both private and public) that were defined. The icon on the right of the preset name shows what type of it is (public or private). You can filter the shown profiles by starting to type in the search field and also use the Public/Private checkboxes to filter them by type.
The default borders presets are automatically included in the application and available right after installation. These are presets created based on the most used scenarios for this section.
When this preset is used, the object for which Use borders was enabled from the Layout window will be surrounded by a thin blue border (solid style, blue color, width of 0.2).
When this preset is used, the object for which Use borders was enabled from the Layout window will be surrounded by a dashed dark border (dashed style, black color, width of 0.2).
When this preset is used, the object for which Use borders was enabled from the Layout window will be surrounded by a regular solid dark border (solid style, black color, width of 0.5).
When this preset is used, the object for which Use borders was enabled from the Layout window will be surrounded by a solid thick dark border (solid style, black color, width of 1).
When this preset is used, the object for which Use borders was enabled from the Layout window will be surrounded by a solid thin dark border (solid style, black color, width of 0.2).
You can type a name for the default preset you are editing/creating.
Add a description for the default preset you are creating/editing.
Optionally you can set the author for this default preset.
When the novaPDF is installed, a default preset is created. This preset uses its own default printing settings to create the PDF files. However you can change those settings and create a custom preset, that when used, will create PDFs using the options you've chosen. For each newly defined preset you can choose to have it as Private or Public by checking or unchecking the Private checkbox.
This lets you select a solid or a dashed border.
This is the thickness of border using the defined measurement unit.
Set here the measurement unit to be used with borders: millimeters (default), centimeters or inches.
The color of the border can be changed, default is blue.
All changes done to the border appearance and type will be shown realtime in the Preview section.
Note: Some of the features mentioned on this page might not be available in your edition. The Professional edition includes all the features, while Standard and Lite have limited functionality. For a comparison between editions, please check feature matrix topic.
